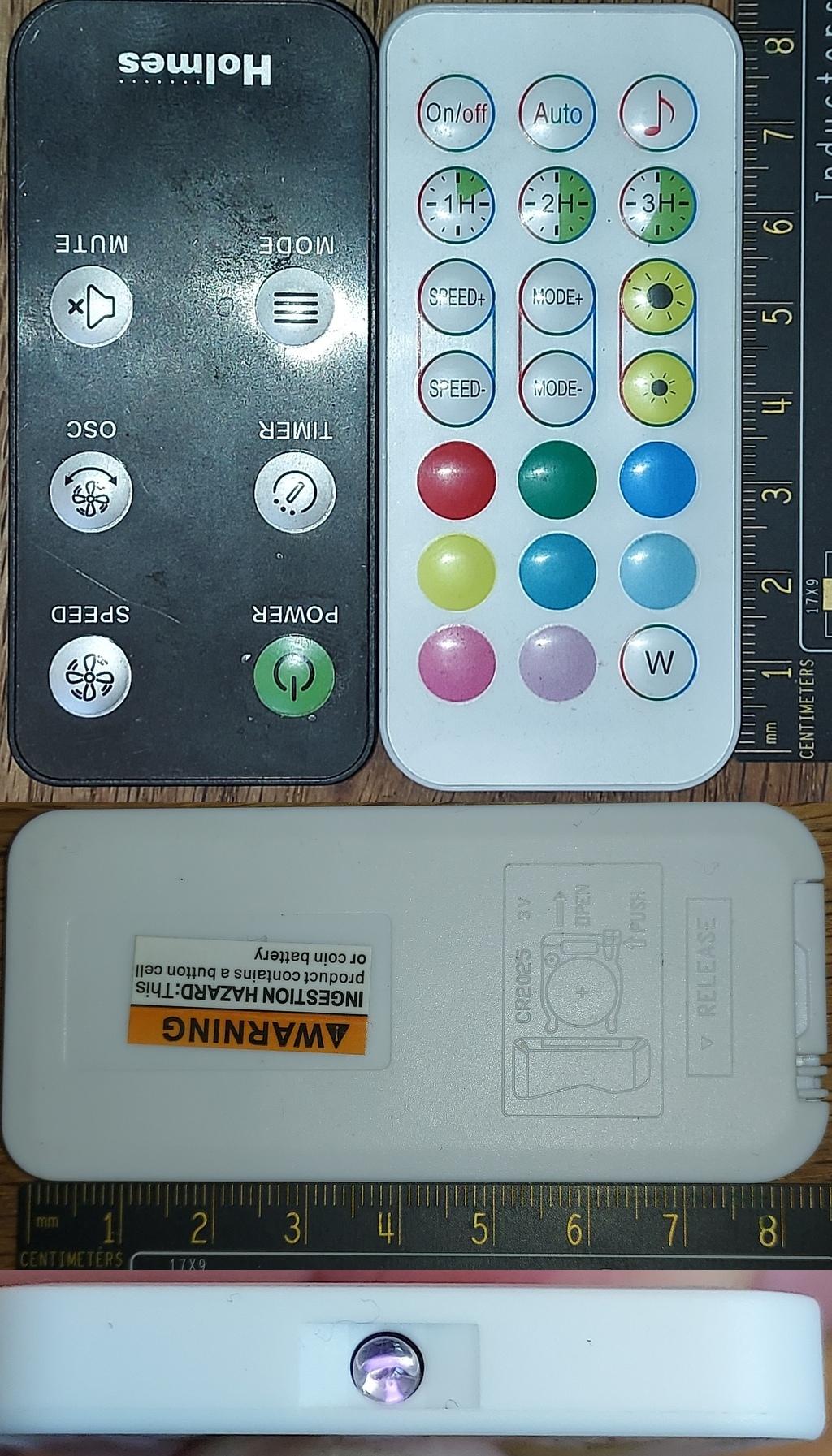

Jun 29, 2026, 8:52 PMHere's an actual IR LED remote shining in my camera. Notice how it's a shade of purple, not red?
- Jun 29, 2026, 8:52 PM
Replies
- Jun 29, 2026, 8:53 PM
I pulled the cover off and OH HELLO
this remote has two "buttons" but pads for 21!
Makes sense, this remote is probably reused with a lot of things
- Jun 29, 2026, 8:57 PM
Blurry picture of the PCB.
Very minimal: a couple resistors and caps, an anonymous 14-pin microcontroller, two little mosfets, and a 433 oscillator. So this thing is a 433mhz remote
- Jun 29, 2026, 9:00 PM
It looks like those mosfets are for the oscillator and the antenna trace, not the LED. Makes sense I guess, whatever MCU this is can handle a low-power LED just fine
- Jun 29, 2026, 9:13 PM
If I'm using this SDR properly (dubious), it looks like it's using 433mhz channel 36, at 433.950khz
- Jun 29, 2026, 9:32 PM
I don't think I can decode or replay the messages it's sending with this specific SDR, I'll have to borrow a different one from my sister for that
- Jun 29, 2026, 9:44 PM
I googled it and found a couple other cases of people running into this kind of remote and getting confused because they're trying to decode the IR or replicate it and THERE IS NO IR, IT IS LIES
- Jun 29, 2026, 9:48 PM
it seems to be a clone of FCC ID 2AUSN-LXZK1021: LXZK-TX1021, a remote for lights, licensed in 2019
- Jun 29, 2026, 9:50 PM
has anyone hacked the FCC and leaked all their confidential PDFs yet?
I'm not saying anyone SHOULD do that, or that I'm eagerly awaiting the collapse of the US government so that I can pick through the wreckage, but it would be nice for us reverse-engineers if someone would leak all these FCC PDFs that explain how shit works
