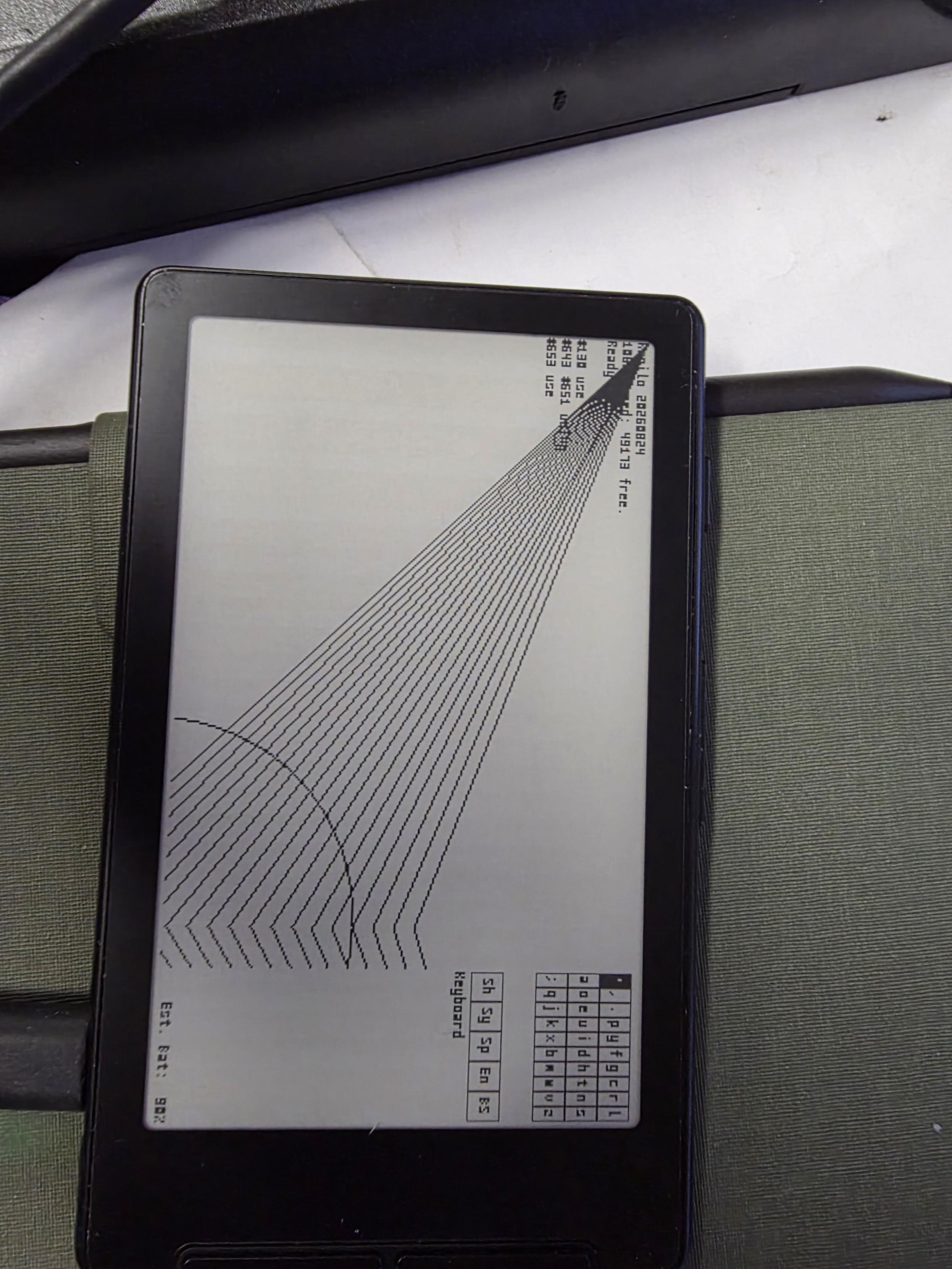

Continuing to work on my #ilo on the #xteink x4 today. I was able to get the full graphics device working, so I have fast(er) shape drawing now. I also transposed the keyboard, making it larger and a bit easier to read. I'm experimenting with getting bluetooth keyboard support in place, but I'm not sure if I'll be able to get that actually working given the limited RAM I have left.

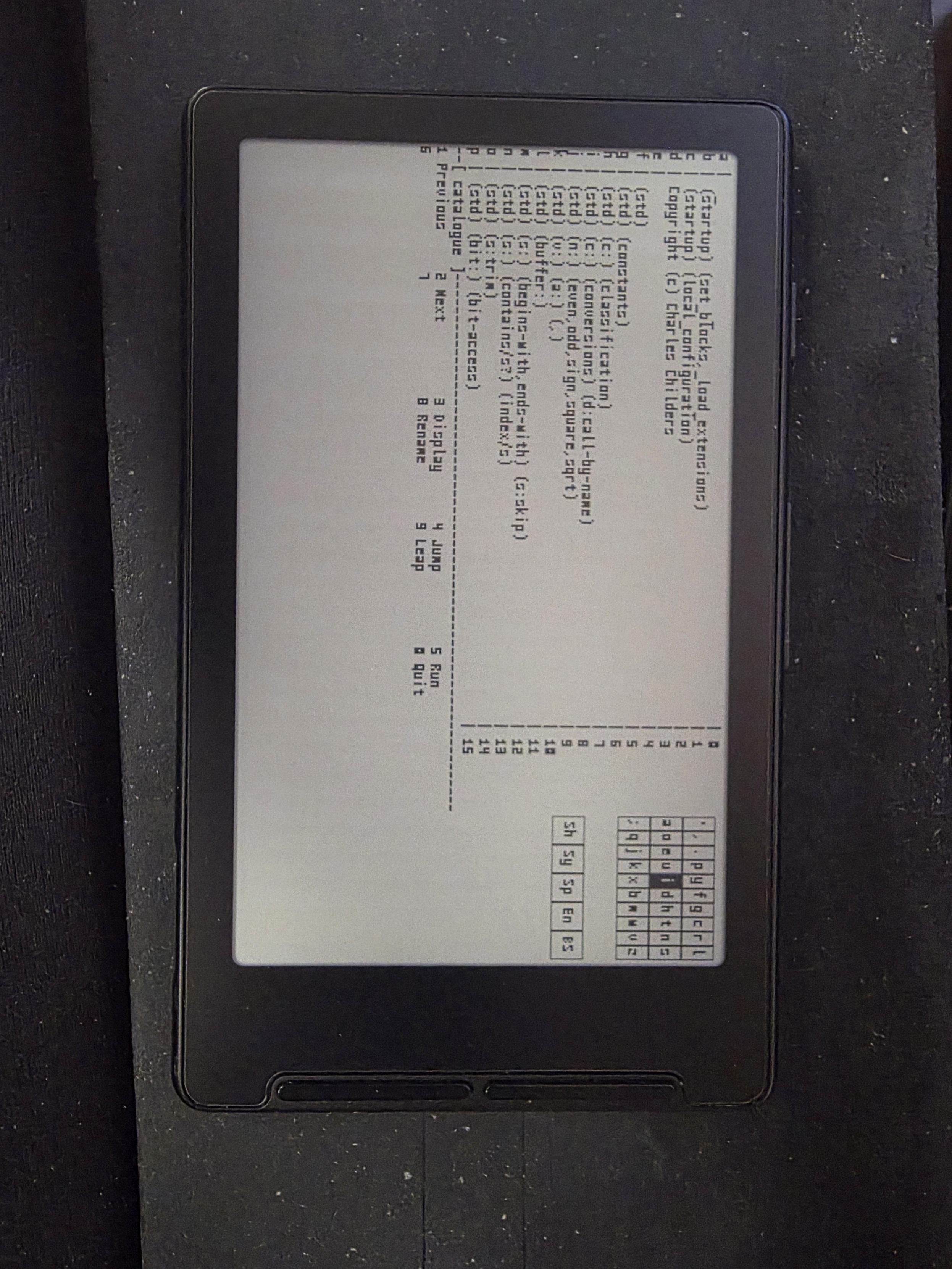

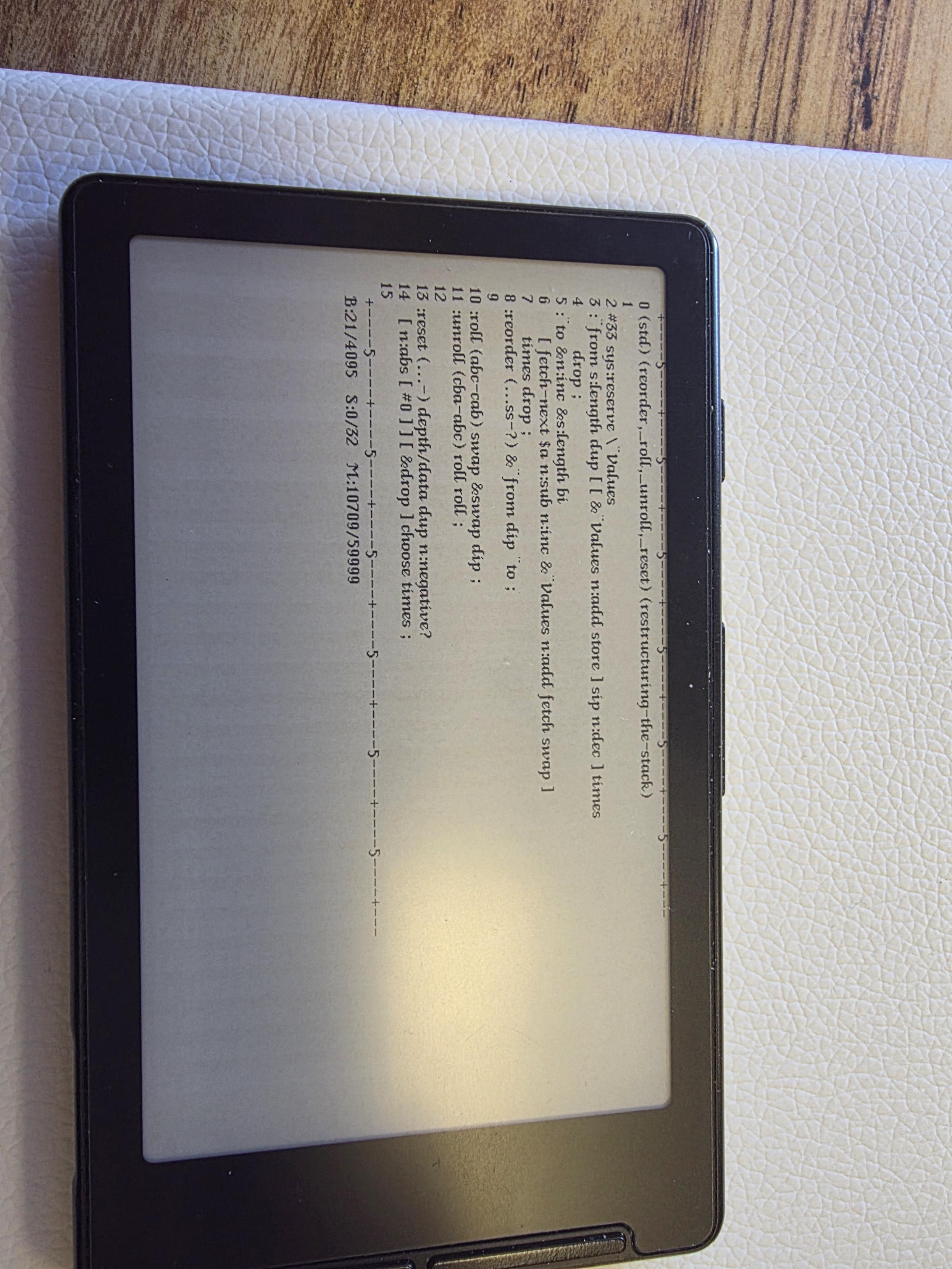

Fixed several bugs, and I now have working input. Now my x4 is a pocket sized ilo computer running my standard Konilo rom and blocks. The blocks and rom are stored on the SD card, so it's easy to backup & update.
I still have around 13k physical RAM free on the x4, so maybe I should try to get a barebones 1bpp graphics device added?

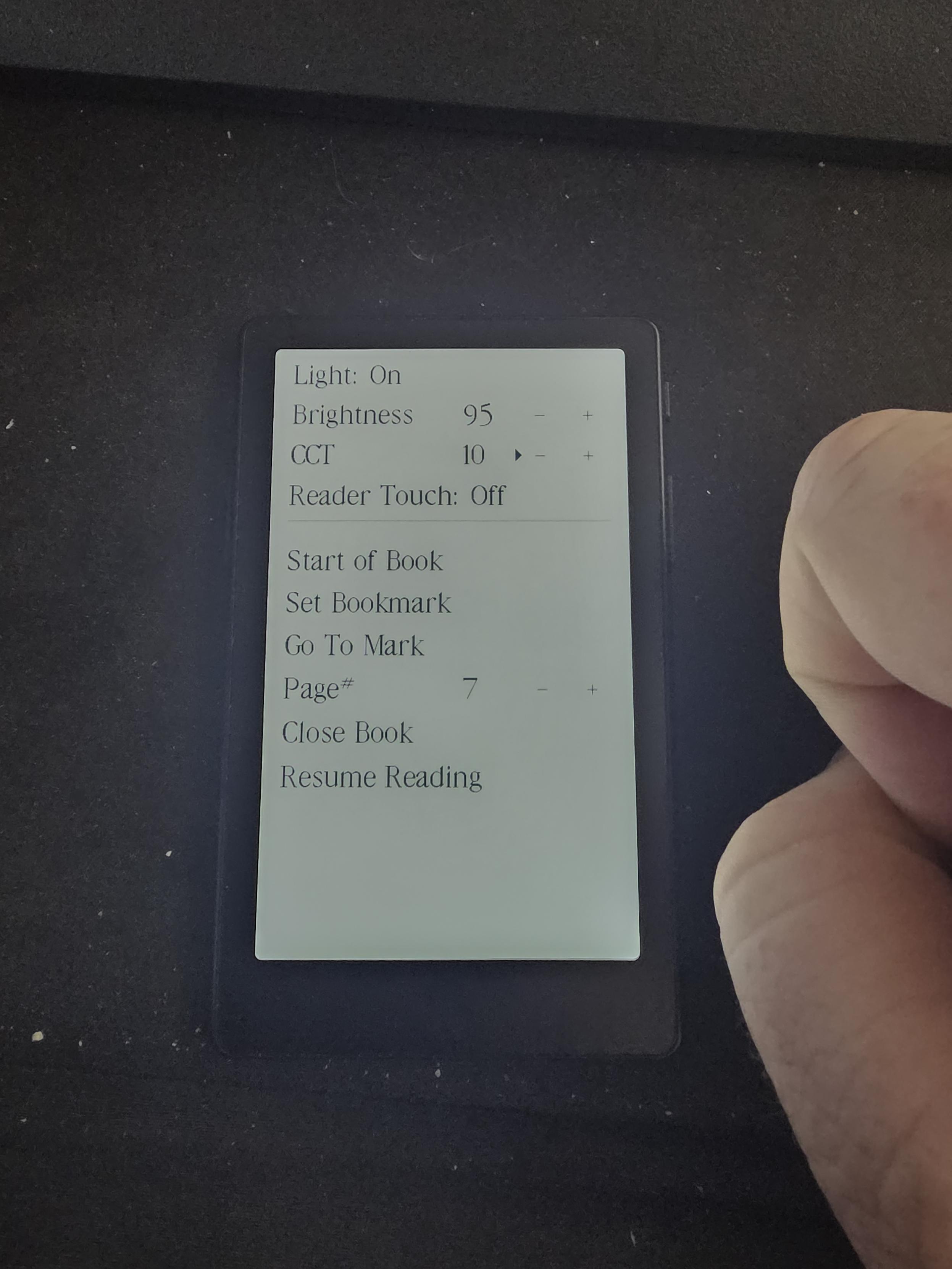

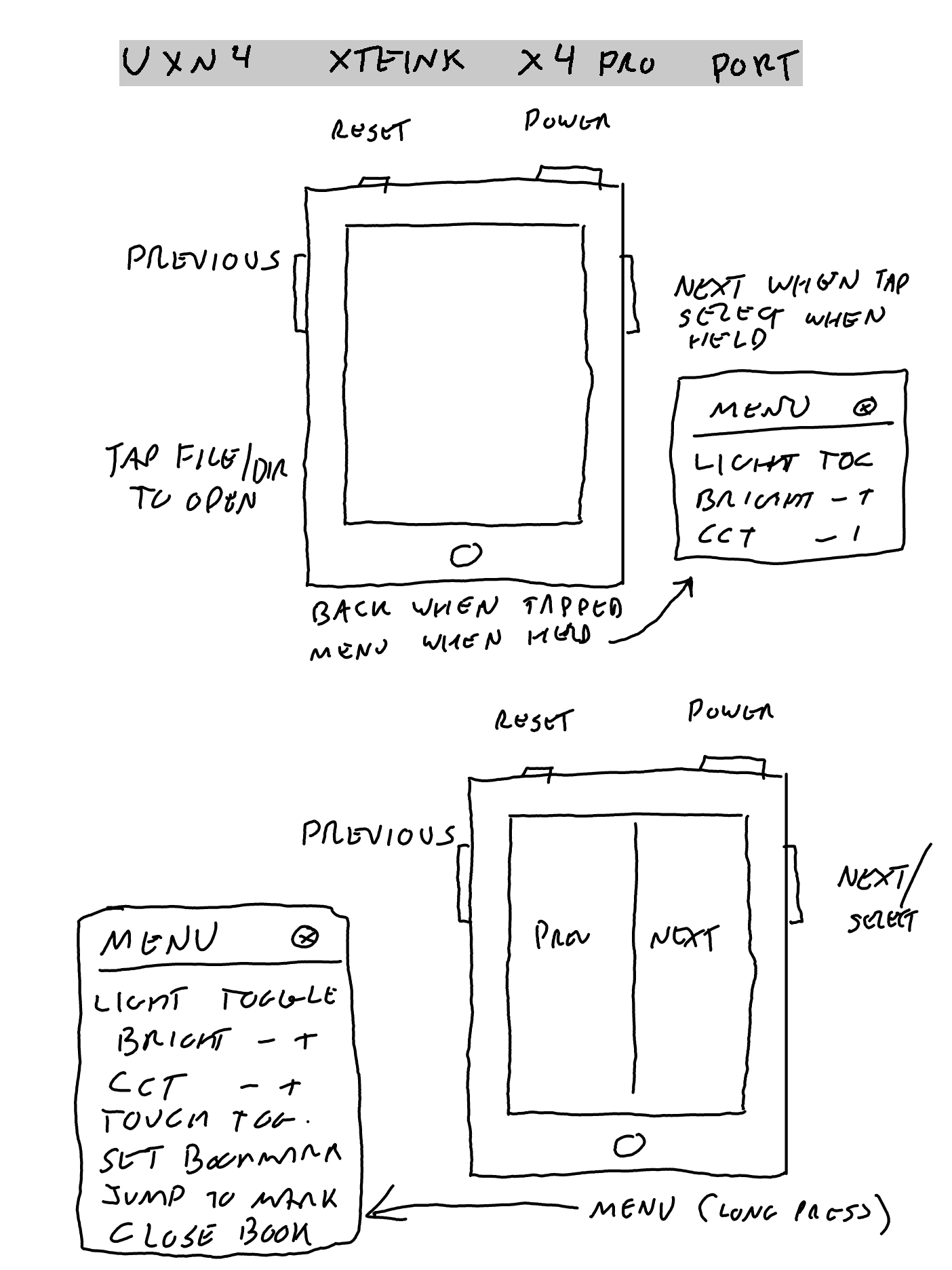

A summary of the controls in the x4 pro uxn4 & my reader rom:

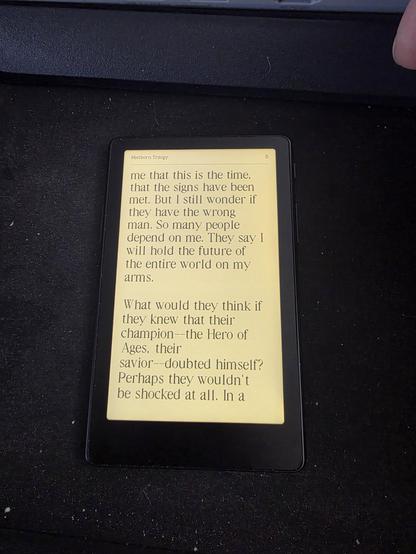

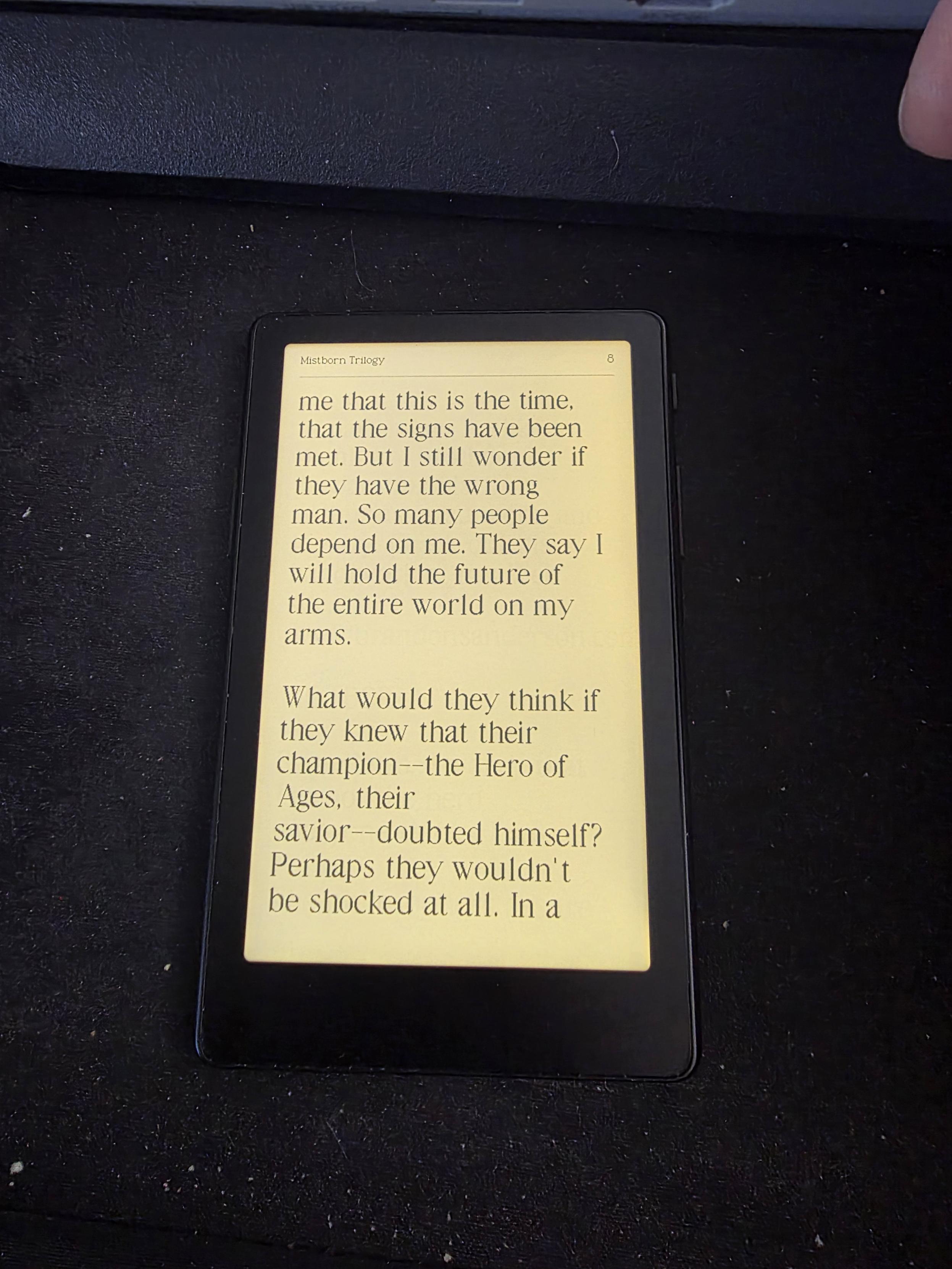

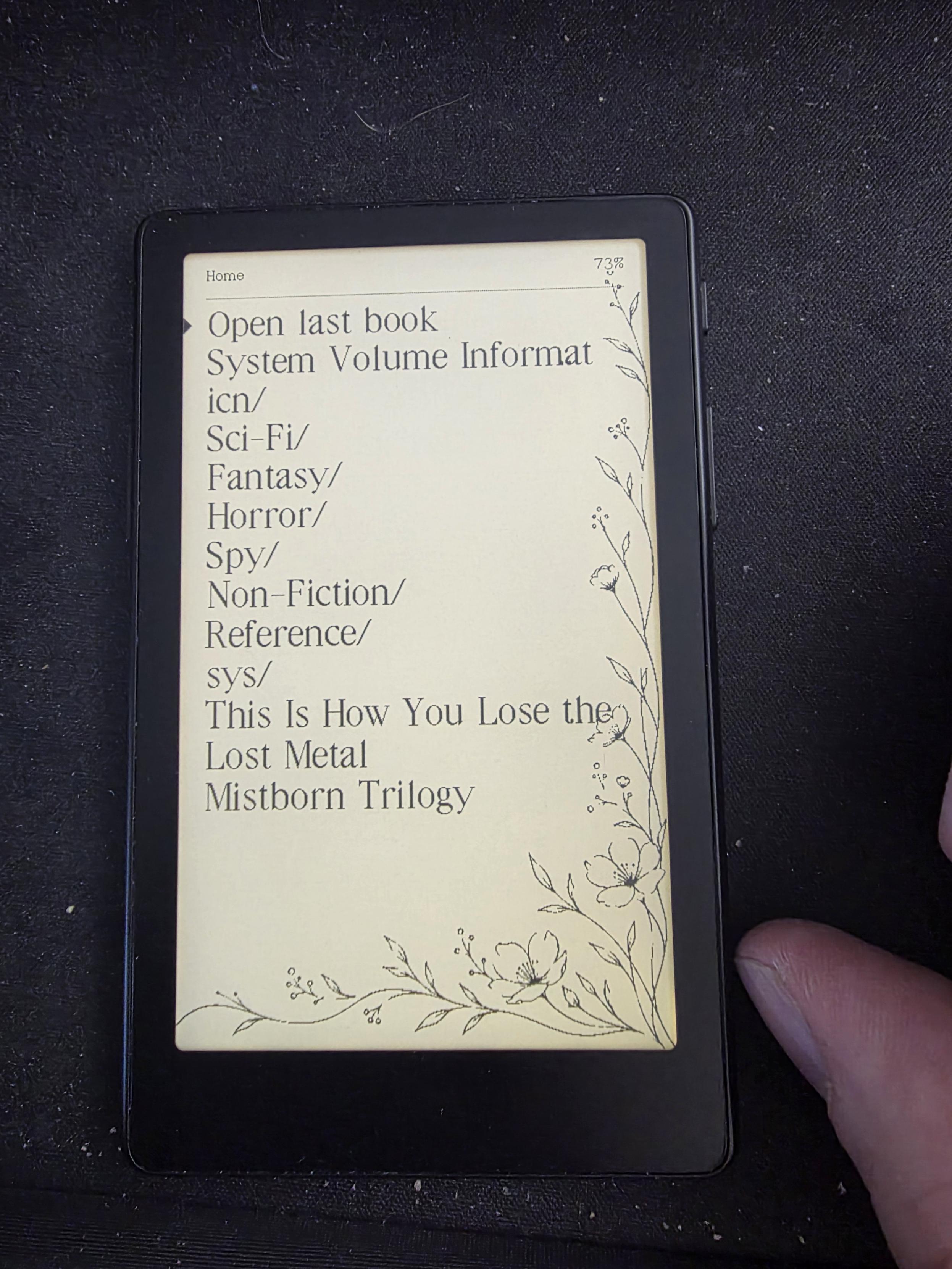

Touch and front light are working on my x4 pro. I'll read a book tonight, note any bugs I encounter, and probably publish a flashable firmware and source tomorrow or Friday.
I began working on a port of my variation of #uxn for the #xteink x4 pro today. At present I have it starting and displaying the reader UI, though I need to finish the touch interaction and front light control before I can actually use it. Once I finish these, it should basically be functional. I already have a rom that should work (tested under uxn11 & uxn32), so I don't anticipate any big issues in getting it usable once the VM is done.

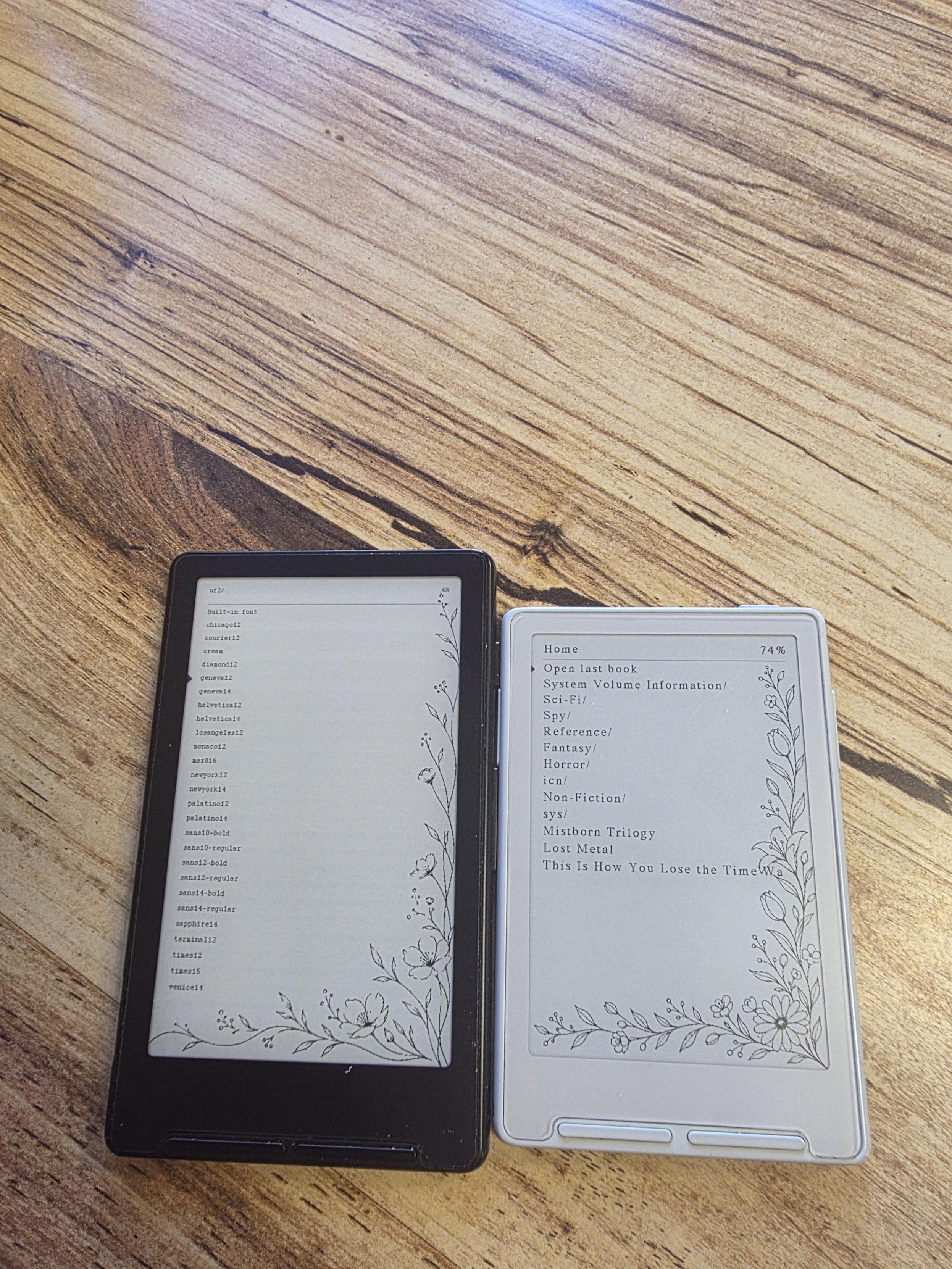

Good morning. I'm continuing to work on my #xteink x3 #uxn reader vm & firmware.
I updated my branch to have it load the uxn rom from sys/firmware.rom if present, or fall back to the built-in rom if not. So testing further updates on the device won't need further flashing.

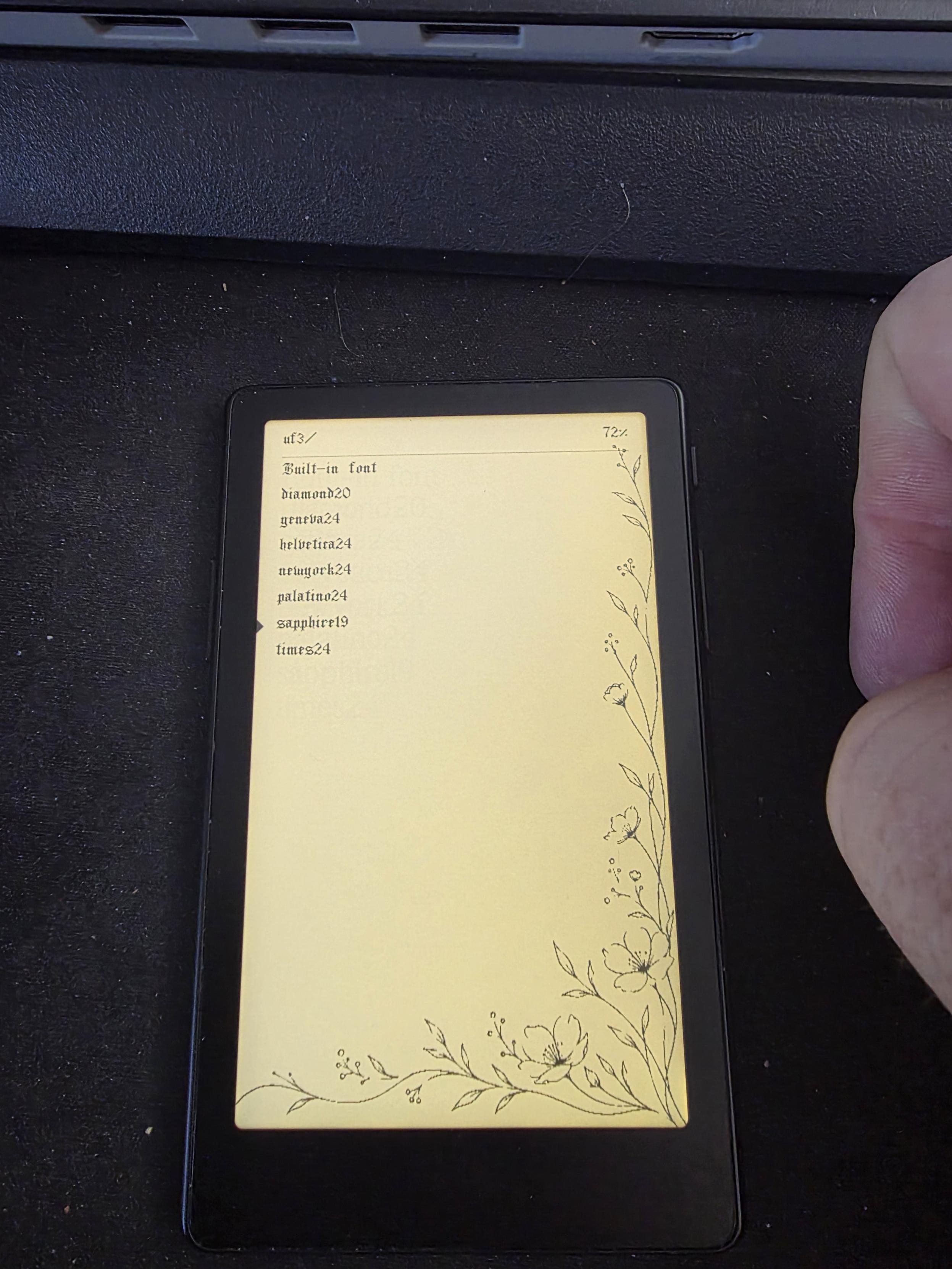

Now working on handling font selections.

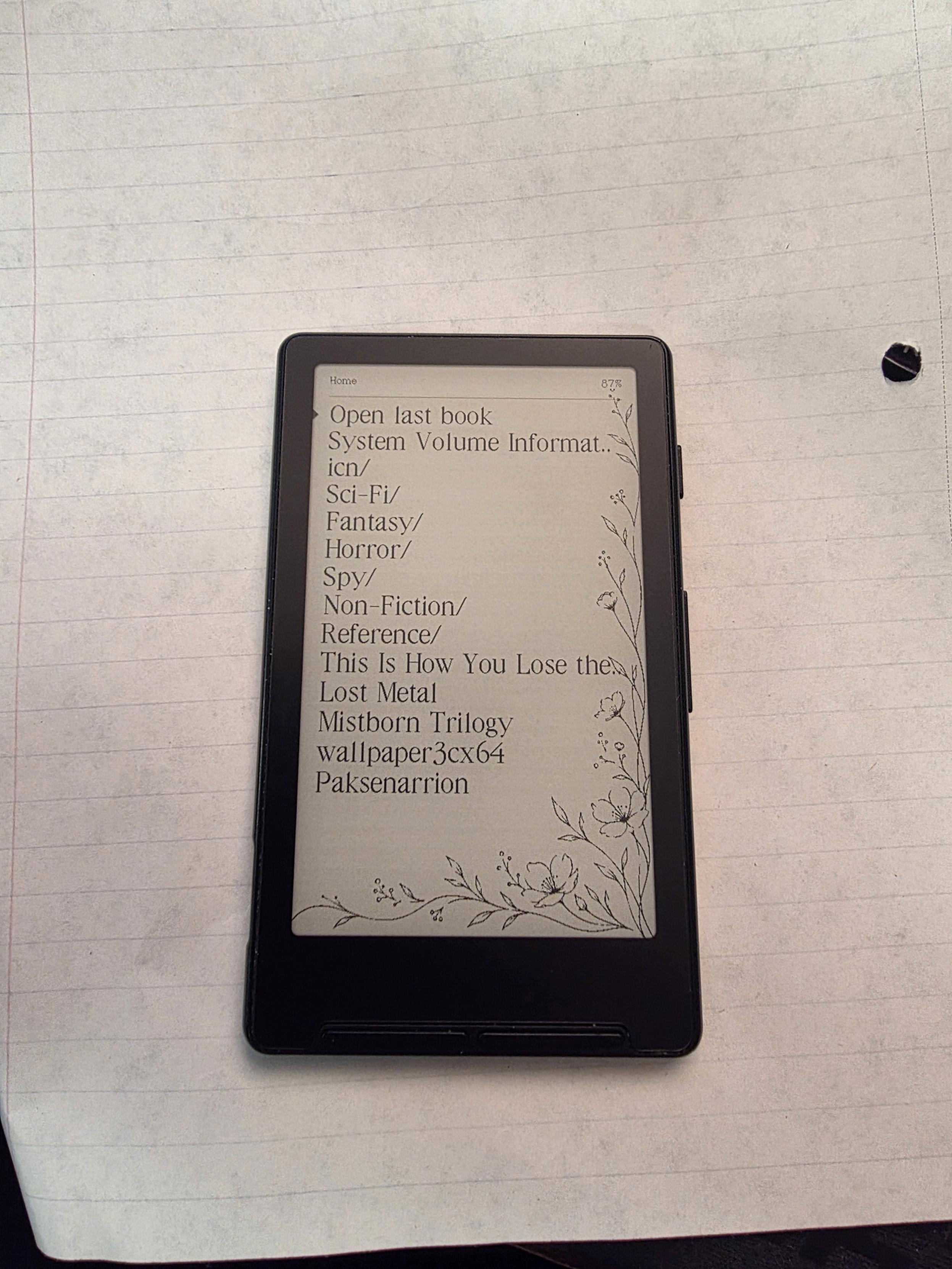

My adaption of uxn4 for the xteink x3 is now available at https://qrvhu.org/
Direct links:
Firmware: https://qrvhu.org/eink/uxn4-x3.bin
Source: https://qrvhu.org/eink/uxn4-xteink-x3.tar.gz
Notes: https://qrvhu.org/eink/uxn4-x3.png
The first version of the Poraka BASIC rom for #ilo has been added to the repository. See the commit at http://fossils.retroforth.org:8000/ilo/info/1e3305cd1a68b224. I'll have some examples added later today.

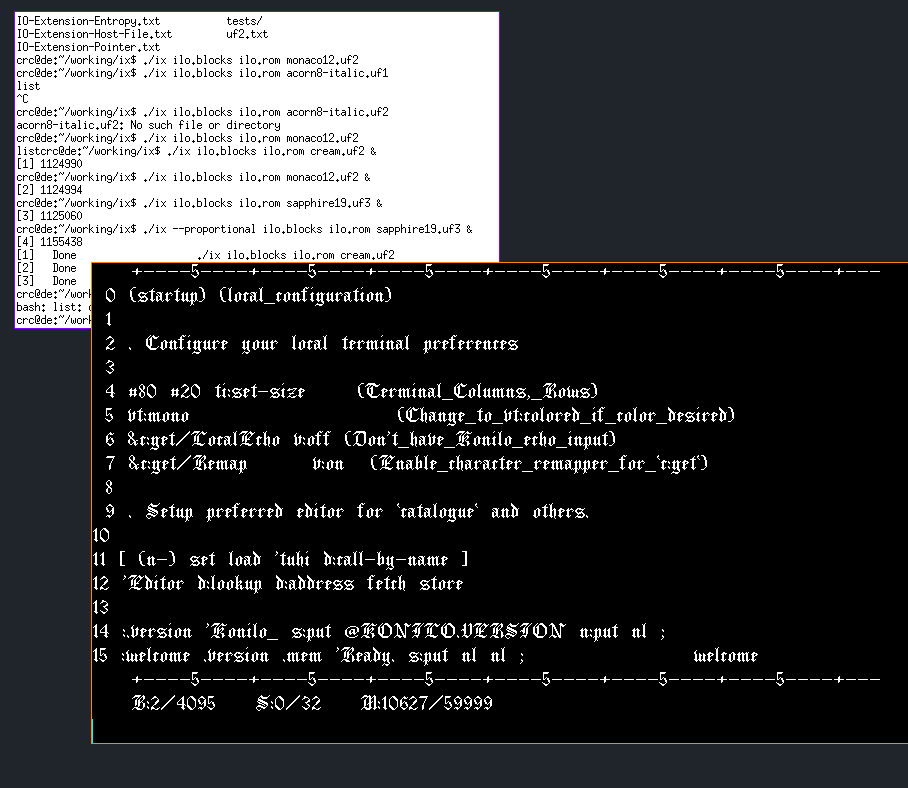

I added support for variable-width uf2/uf3 fonts in my c/x11 ilo.
I'll try to finish up on it this weekend, then work on adding support to the other ilo vm models with graphics output.

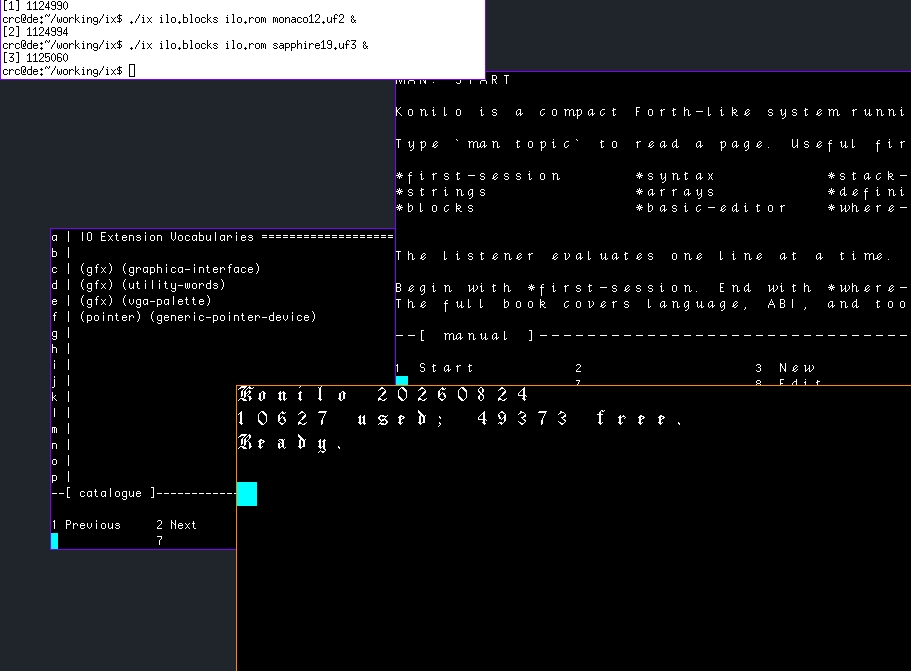

I finished the initial ufx font support in the c/x11 ilo. Supports uf1, uf2, and uf3, and resizes the terminal based on the font size.
(I haven't started on the C/SDL, C#, or C/Wayland ones yet, and those will take at least a few days due to an upcoming event commitment that spans the next three days).
Prepping for my next few projects: updating ilo/x11 & others to support ufx fonts, porting uxn4 to the xteink x3, more refinement on the extension specs for the sinilo vm, and finishing the poraka basic rom.

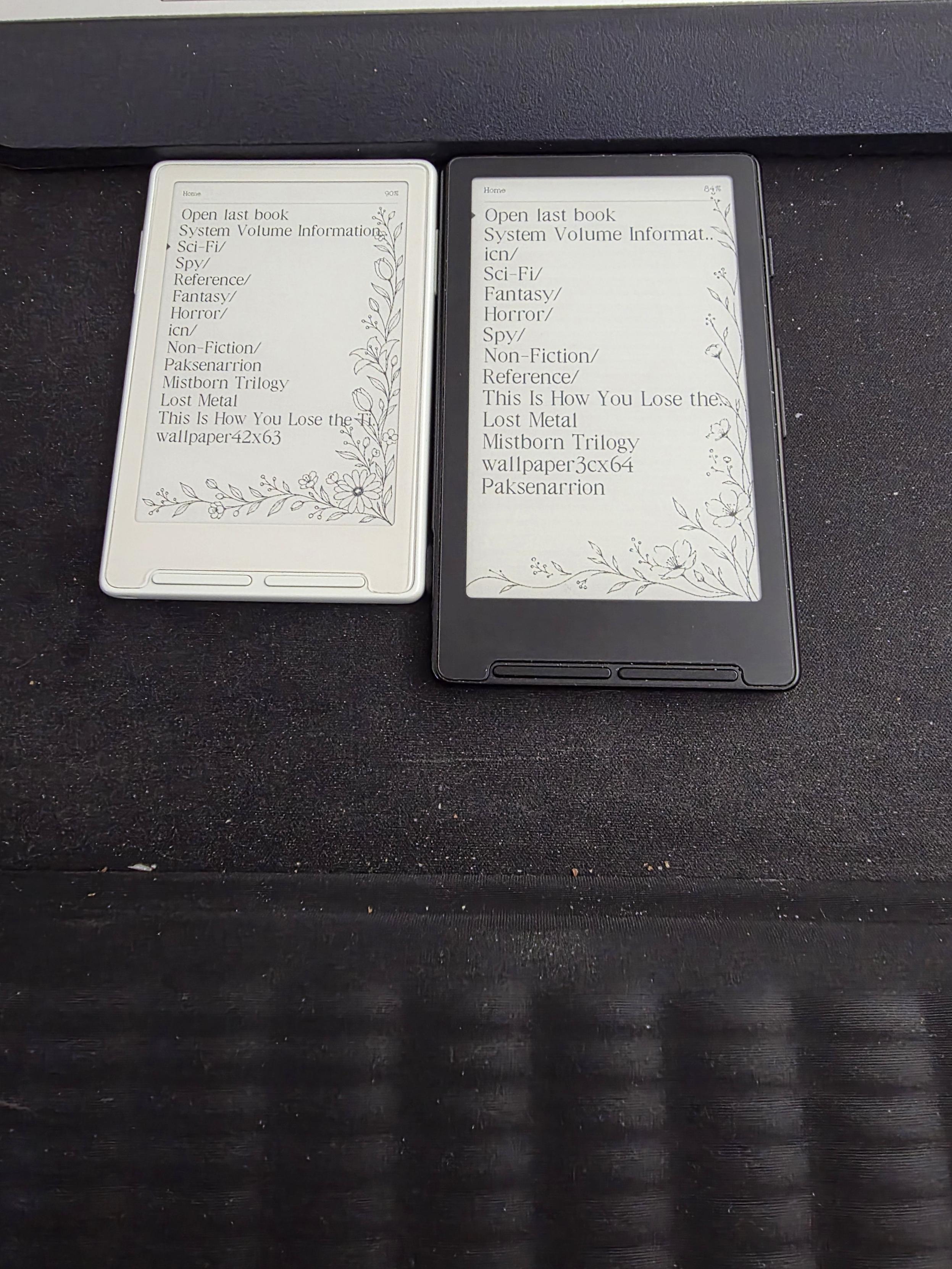

I'm running a lightly modified version of the uxn4 vm & reader firmware from @neauoire on my x4 now.
My first version of #uxn in #ilo is now in the fossil repository.
Commit: http://fossils.retroforth.org:8000/ilo/info/1338ca2eb422efb7
Source: https://konilo.org/uxn.sitelen-ilo.html or as plain text: https://konilo.org/uxn.pali

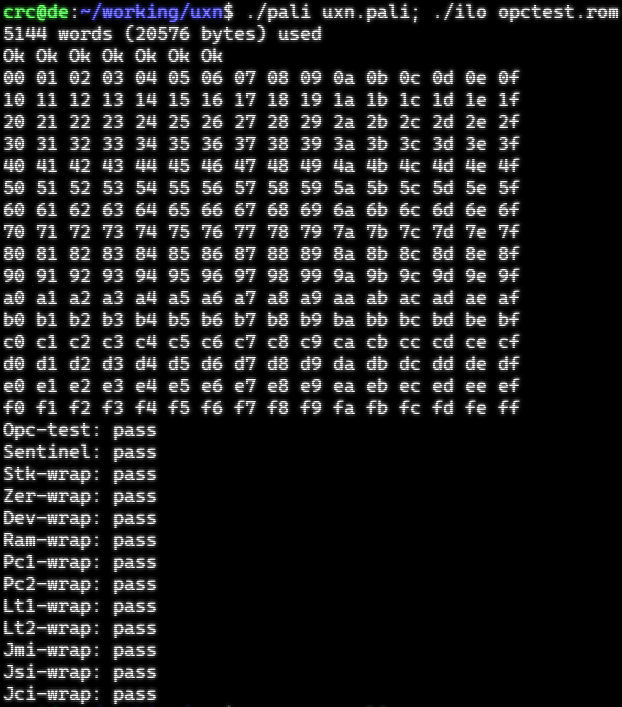

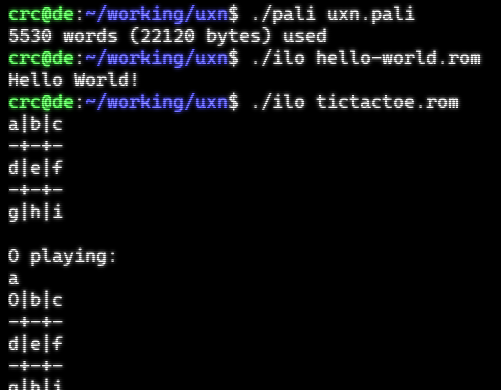

https://asciinema.org/a/1267653 shows my #uxn in #ilo assembly running the drifloon assembler, building another copy (properly byte identical) of drifloon, then assembling opctest & tictactoe, and running both.
The uxn implementation is down to 2853 cells, of which 2k are used for the stacks & internal memory buffer for block i/o, so just over 800 cells of actual machine code. It can be built to either write stderr into the blocks or to just discard the stderr text (which is what I have set as the default).
I'll do a little more work on this tomorrow to tighten up a few things, but it's complete. Later this year I will be working on a #nga port, and will work on expanding the device coverage, but I'm pretty happy with it at this point.
